Project references

Here you will find a selection of our previous projects.
Stack1
Three DiLiCo current density sensor layers were integrated into the stack from Nedstack.
Sensor
DiLiCo current density sensor layer with 209 segments before integration into the stack.

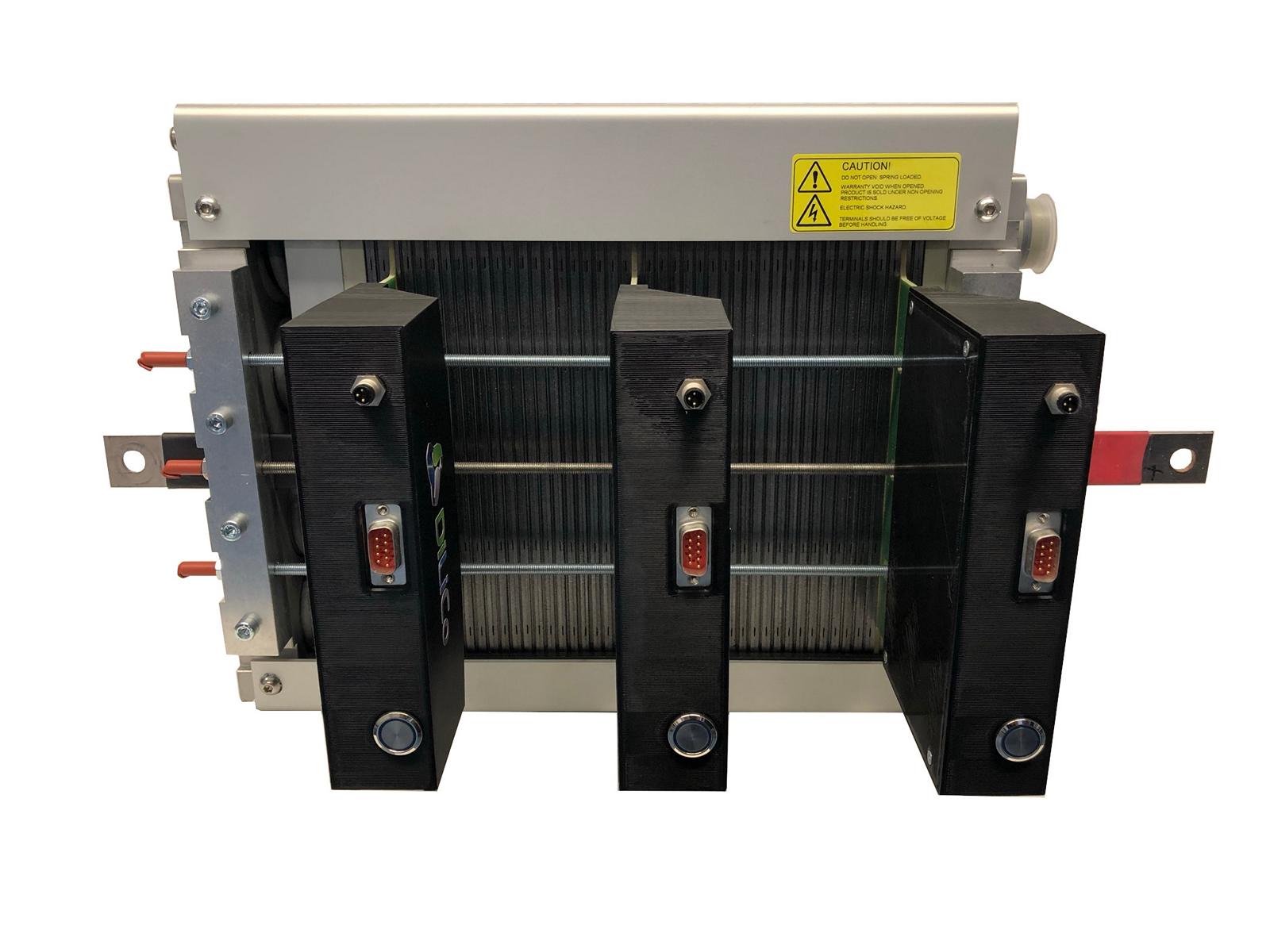

Stack2
The three sensor layers were integrated into the stack on the bipolar plates at three different points.

DiLiCo current density for one of the most modern fuel cell laboratories in Germany

DiLiCo engineering designed and manufactured three custom-made DiLiCo current density sensor layers including evaluation electronics for a fuel cell stack from Nedstack Fuel Cell Technology B.V. in the Netherlands. The fuel cell stack with the integrated sensor layers is used for research purposes in a test stand in the customer's fuel cell laboratory. The following tasks were taken on in the order:

  • Planning and conception of the sensor layers for the manufacturer-specific fuel cell stack design
  • Production of a sensor layer dummy for leak testing at the stack manufacturer
  • Production of the sensor layers and planning of the evaluation electronics
  • Programming the firmware and the interface for data transmission to the customer's software
  • Function test and quality check of the sensor layers before integration into the stack
  • Training and instruction in the operation of current density and temperature measurement at the customer

Carried out for the customer:

Pavillon1
Exterior view of the energy pavilion 1
Pavillon2
Exterior view of the energy pavilion 2
Pavillon3
Interior view with the H2-CHP system inhouse5000+ hydrogen
Pavillon4
Interior view of the technical room with hot water tank

Energy pavilion to supply consumers in a hydrogen village

DiLiCo engineering worked for the customer as a general contractor and took on the following work on the construction of an energy pavilion as part of the HYPOS projects H2-Netz & H2-Home:

  • Planning and construction of the energy pavilions for the connection of a purely hydrogen-operated fuel cell thermal power station
  • Planning the hydrogen connection and the safety technology for the house installation
  • Colored exterior design
  • Installation of the ceiling heating and cooling system
  • Commissioning and TÜV acceptance of the safety functions
  • Coordination and supervision of all work

Carried out for the customer:

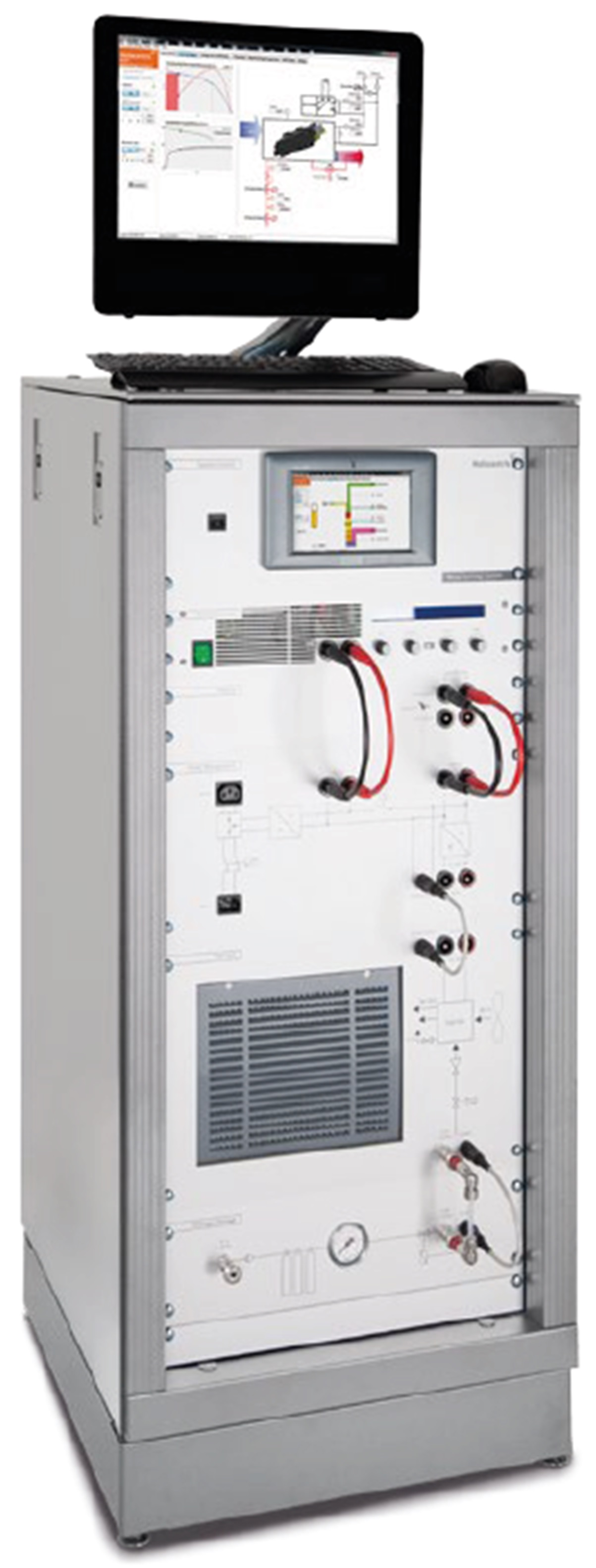

Energy Lab System
Fuel cell and electrolyzer test system Hybrid Energy Lab
Energy Lab Software
Control and data software for the Hybrid Energy Lab

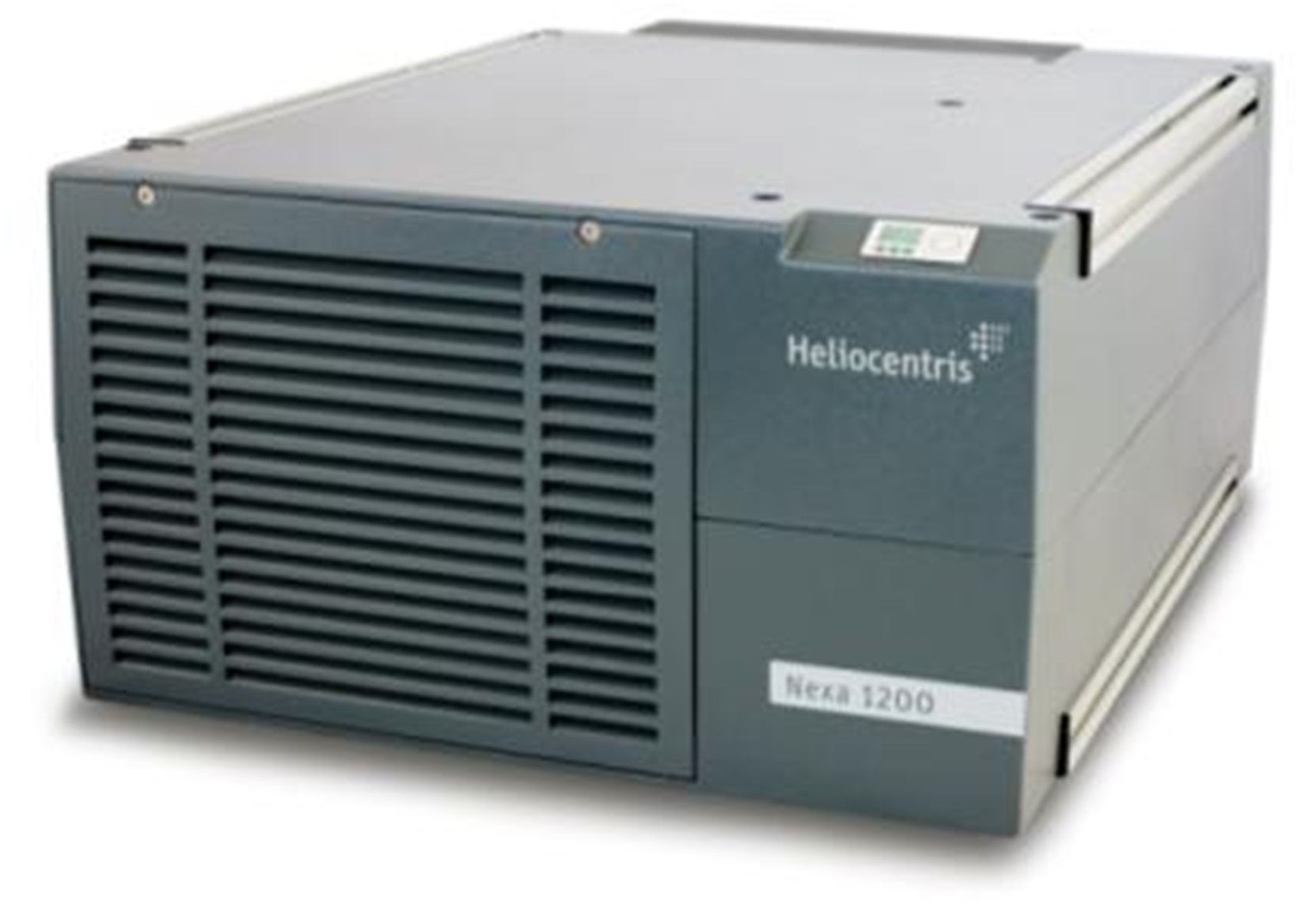

Fuel Cell
1.2 kW fuel cell module in the Hybrid Energy Lab

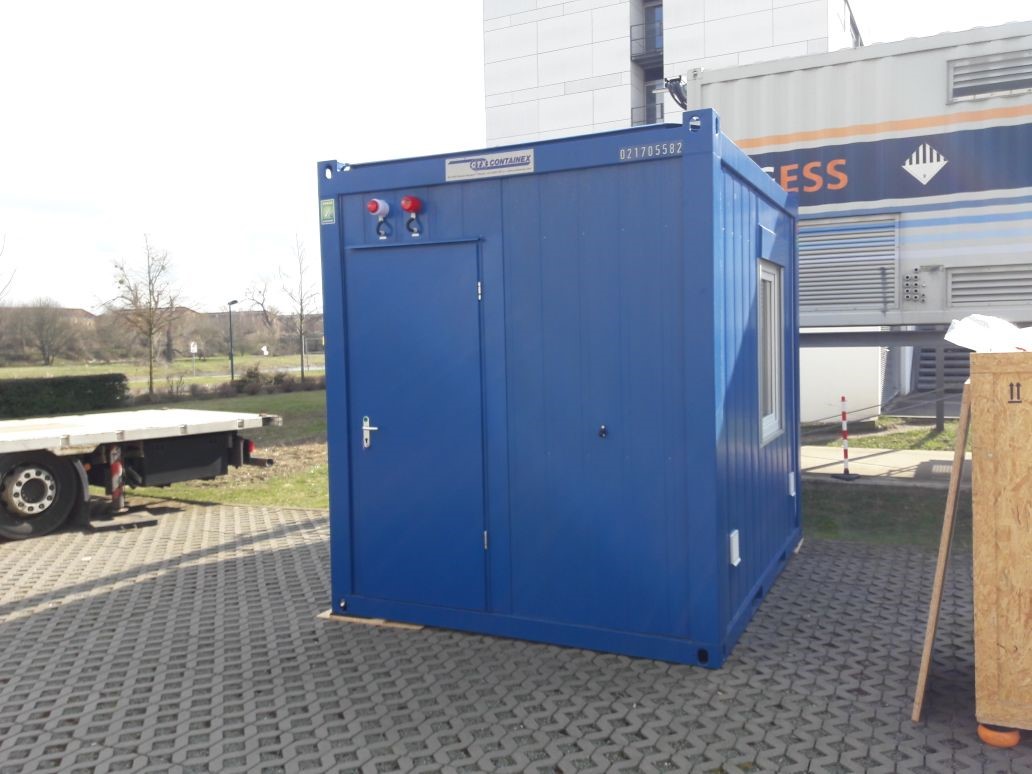

Container
Exterior view of the laboratory container

Fuel cell and electrolyser system in the laboratory container

DiLiCo engineering was commissioned to build a laboratory container as part of a project. The Hybrid Energy Lab from Heliocentris Academia International GmbH was used. The following work was carried out:

  • Design and delivery of a laboratory container for the use of an electrolysis fuel cell system
  • Identification and integration of the electrolysis fuel cell system
  • Electrical and procedural installation work
  • Integration of security technology and commissioning

Carried out for the customer:
